Gen5 PCIe M.2 to E3.S Adapter (1x4)
Product Description
Gen5 PCIe M.2 to E3.S Adapter (1x4)
Gen5 PCIe M.2 to E3.S Adapter (1x4)

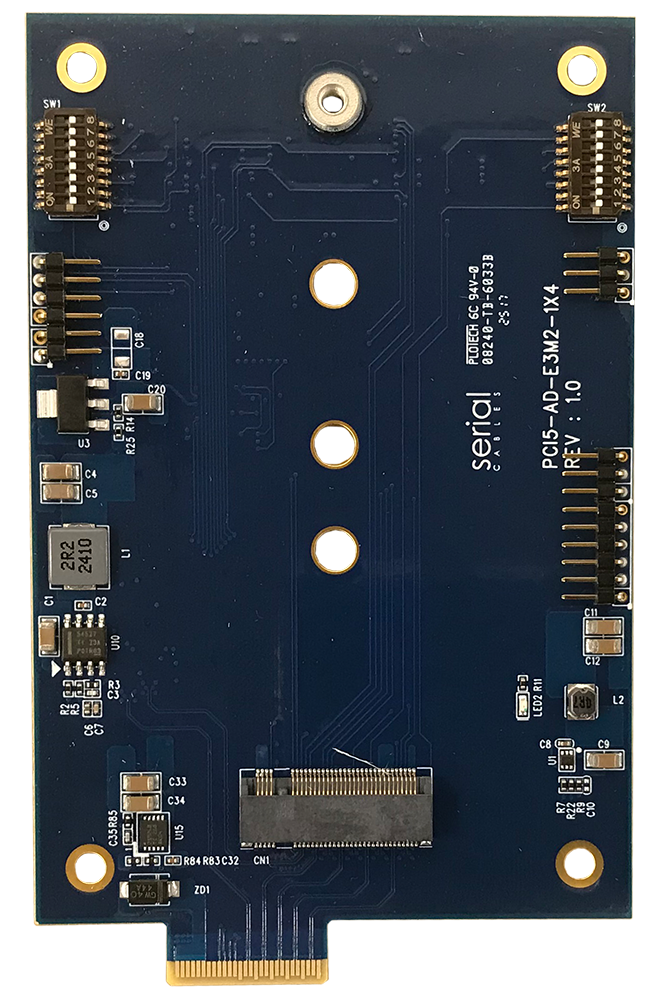

This adapter from Serial Cables is designed to expand the testing possibilities of your Gen5 PCIe/NVMe slots already present in most Gen5 server and workstation platforms. By adapting your standard Gen5 M.2 2280 devices to the EDSFF E3.S form factor, you can test your E3 compatibility pin for pin with any M.2 device, greatly reducing the cost of testing in production involved with EDSFF devices.
On-board LEDs indicate presence, power and activity. The piano switches on the card can adjust CLKREQ on both the M.2 and EDSFF sides, PWRDIS, PERsT as well as all of your I2C signals. Provided access to every pin on both the M.2 and EDSFF sides give you the control and monitoring of the entire channel, no matter your test application.
| User's Manual | Download |
