Gen6 PCIe/NVMe/CXL x8 AIC – EDSFF Horizonal ‘Active’ Adapter w/Phison Gen6 Redrivers
Product Description
Available mid-Feb, 2026 in volume

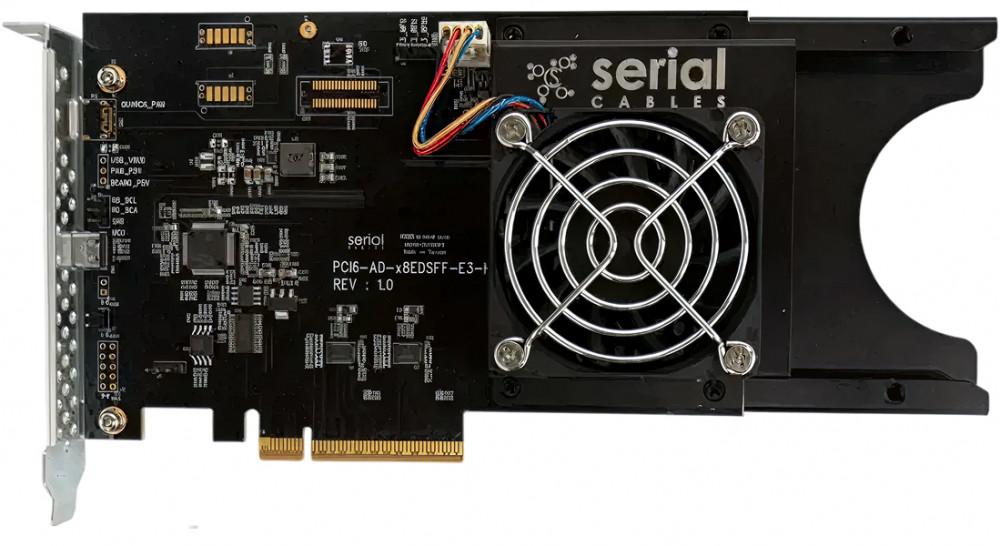

The PCIe Gen6 x8 EDSFF to CEC Redriver Card features eight Phison PS7161 linear redriver ICs, it delivers

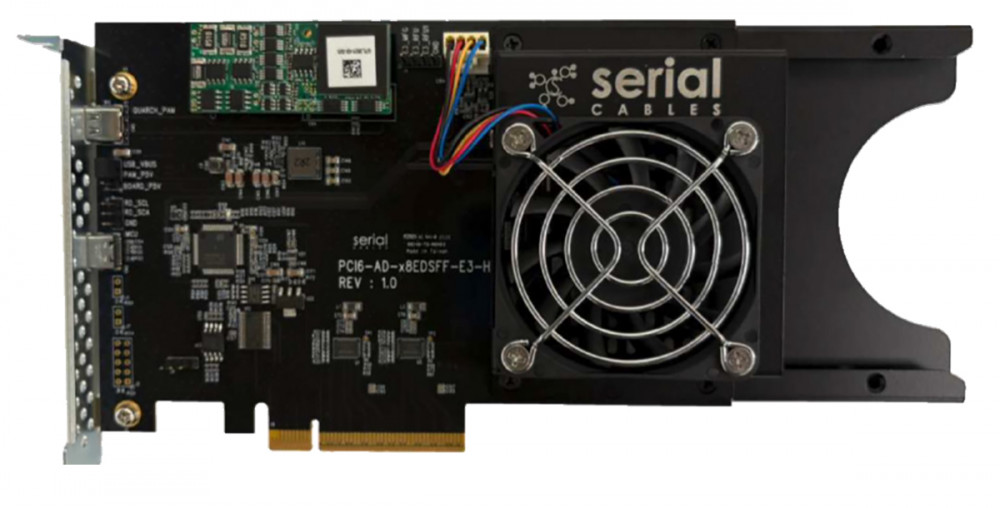

robust signal integrity for a full x8 link via a native 70-pin EDSFF edge connector. Added Quarch PAM Mezzanine (optional) allows for Quarch Power Analysis of all power rails as well as sideband signals.
Architecture & Form Factor
- Eight Phison PS7161 linear redriver ICs
- Native x16 EDSFF to CEC
Optimized for PCIe Gen6, NVMe, and CXL signaling
- Adjustable EQ, flat gain, and swing per lane for high
channel margin
- Board size: 255mm × 111mm
- Supports E1.S, E2, E3.S/L 1T, E3.S/L 2T SSD drives
Connectivity
- 1 × EDSFF x8 SSD EC
- 1 × PCIe Gen6 x8 CEC
- 1 × USB Type-C port for CLI management
Power & Cooling
- 12 V DC input
- Max power consumption: 8.4 W (0.7 A @ 12V)
- Active cooling with integrated fan
CLI Telemetry
CLI interface accessible via USB-C, includes:
- EQ, flat gain, and swing adjustment (per chip or
globally)
- Save/load custom profiles
- Board temperature and current readings (lsd)
- Built-in self-test (bist) for all redriver ICs
- Firmware version, part number, and serial
number readout
- Full system information dump (sysinfo)
- MCU firmware reset command (reset)
- Additional EDSFF-specific controls: power
disable, dual port enable, host LED control,
present detection, SMBus read/write to SSD
Hermes API
Python Library for PCIe Gen6 EDSFF Redriver Control
The Hermes API delivers full programmatic access to Serial Cables' PCIe Gen6 EDSFF Redriver cards, bringing signal integrity tuning into your automated workflows.
Key Capabilities:
- Signal Tuning — Adjust equalization (2.3–20.8 dB), flat gain, and output swing across all redriver channels
- EDSFF Control — Manage PERST#, dual-port mode, power disable, and host LED signals
- Diagnostics — Monitor card temperature, fan speed, and current draw in real-time
- I²C/SMBus Access — Direct communication with downstream EDSFF devices
- Configuration Management — Save optimized settings to flash for persistent deployment
- Extensible with QuarchPy — For Quarch Mezzanine enabled cards (optional), this API can be used alongside to offer monitoring/tuning AND power/sideband measurements
Supports both x8 and x16 card variants. Integrates seamlessly with Atlas3 switch and Hydra JBOF APIs for end-to-end PCIe Gen6 test automation.
To Install:
pip install serialcables-hermes
